The Automatic Lock Bottom Folder Gluer Machine uses imported electrical appliances and accessories, and is designed for export. The front and rear inverters are operated separately, making paper output easier. It has the characteristics of fast speed, reasonable structure, and flexible operation.
| Model | TFG-900 | TFG-1200 |
| Suitable material | 200-800g/㎡cardboard and N/F&E flute corrugated board | |
| Speed range | 0-400m/min | |
| Inching speed | 30m/min | |
| Max blank width | 900mm | 1200mm |
| Dimension(L) | 13500mm | 13500mm |
| Dimension(W*H) | 1400mm×1600mm | 1850mm×1600mm |
| Mechanical weight | 8T | 9T |
| Mechanical power | 19kw | 19kw |
| Compressed air | 6bar | |
| Air compressor capacity | 10㎡/h | |
| Air tank capacity | 60L | |
Automatic Lock Bottom Folder Gluer Machine is widely used in packaging boxes for light industrial products such as medicine boxes, cosmetic boxes, toothpaste boxes, wine boxes, food boxes, and gift boxes. With optional pneumatic accessories, it can also glue mail bags, CD boxes, document bags, stocking boxes, and French fries boxes, etc. It can glue boxes with lock bottoms and boxes without lock bottoms.
| Model | TFG-900 | TFG-1200 | |
|
A | 160-900mm | 170-1200mm |
| B | 100-900mm | 100-900mm | |
| E | 70-440mm | 70-560mm | |
|
A | 170-850mm | 170-1050mm |
| B | 170-900mm | 170-900mm | |
| E | 80-440mm | 80-560mm |

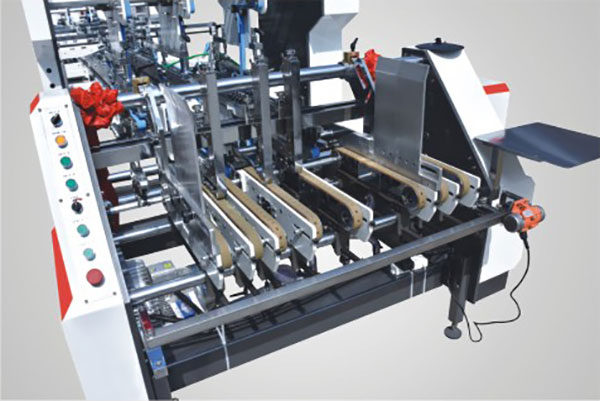

6pcs Adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.

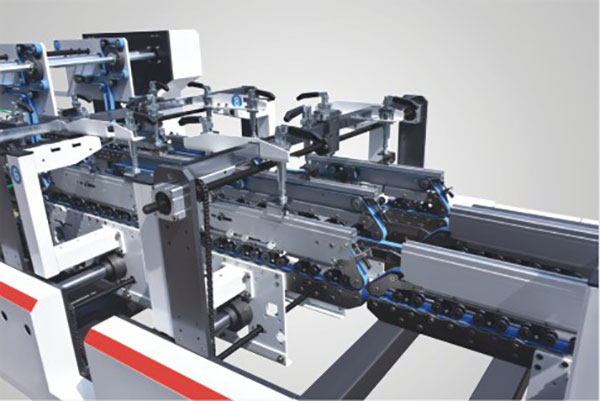

Board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.
Equipped with the lower gluing tank.
The folding is equipped with the driving belt, folding belts have corrective function, extension work, make the box forming more stable.
Independent drive for complete control and faster job change ; Synchronized kicker adjusts to carton arrival time; Adjustable transfer conveyors adapt to difficult box shapes; Height adjustable for a perfect box stream.

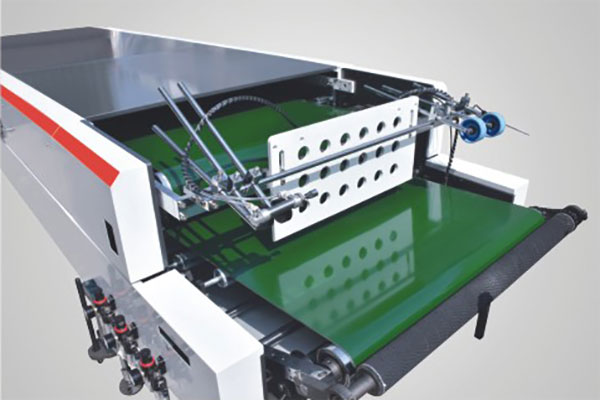

Integrated box stream regulator for precise stream intervals and faster running. In manual mode, the belt moves at a constant speed and is not affected by the main motor speed. Pneumatic pressure control is more accurate, to ensure bonding effect.
